E-Connect System

SCADA Centralization and Supervision System

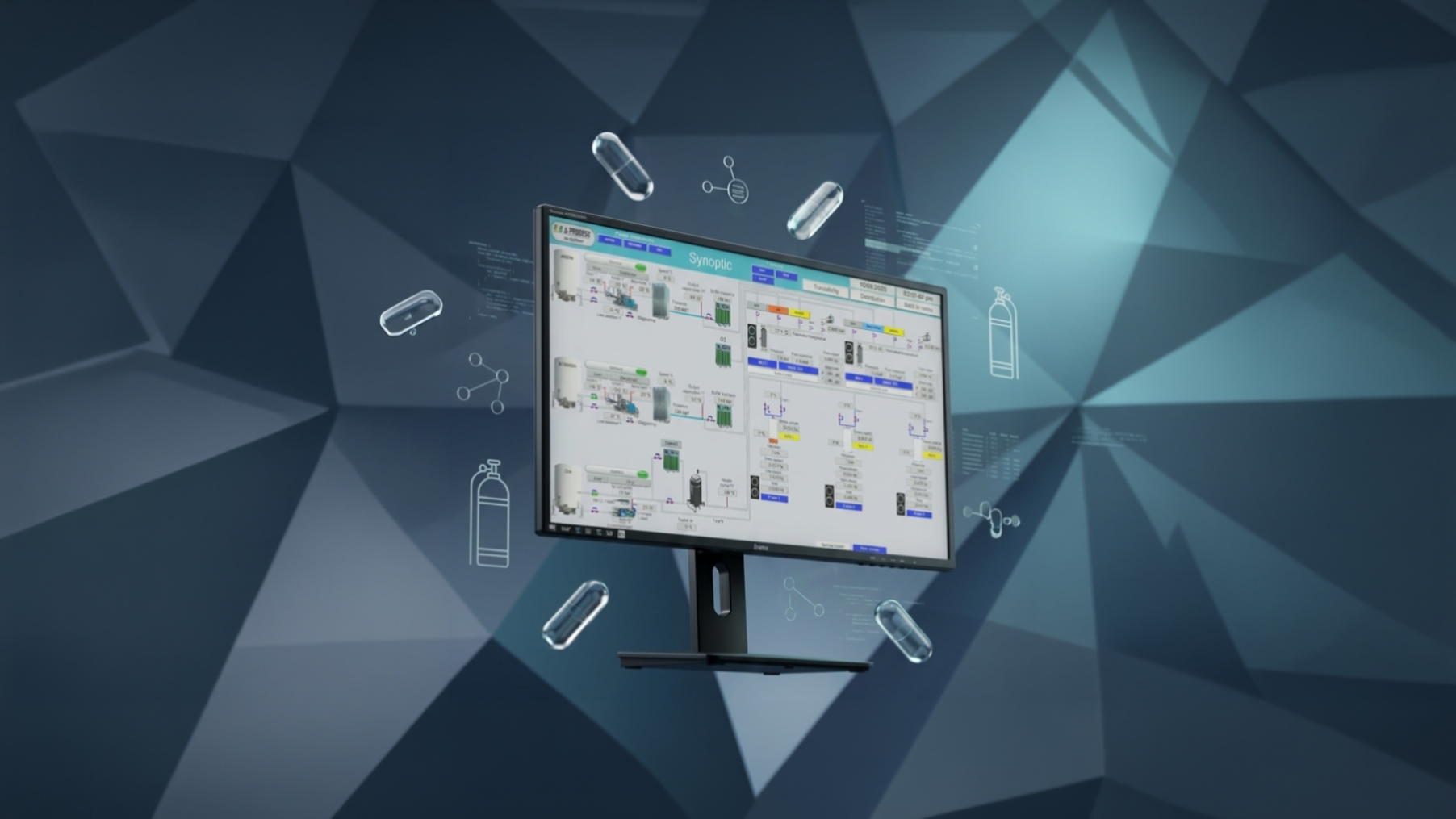

E-Connect

The E-Connect system is the SCADA solution developed by PLC & Process to centralize supervision, coordinate field equipment, and ensure the overall data management of your industrial site.

Request a Quote Datasheet ← Back to Range

Functions & Flow

  • Centralization & Priorities: Collects all operational data and manages priority assignment between systems.
  • Synchronization: Coordinates processes and pumps. Prevents cross-contamination on common vacuum/purge lines without modifying existing pipework.
  • Unified Alarms: Consolidates and logs alarms from all connected equipment.

Supervision & Traceability

  • Real-time: Graphical synoptics, active cycles, filling values, and pump statuses.
  • Traceability: Complete history archiving by system, including all filling data.
  • Easy Export: Transfer data via SQL database, USB drive, or directly to a local PC.

Connectivity & Security

  • Interoperability: Communicates natively in Ethernet/IP with other PLCs.
  • Isolated Networks: 2 separate Ethernet ports (one for the machine network, one for the client network).
  • Remote Maintenance: Built-in secure VPN modem for remote technical assistance.

Technical Characteristics

System type: SCADA (Supervisory Control and Data Acquisition)
Field network interface: Ethernet/IP (inter-PLC link)
Upstream network interfaces: 2x distinct Ethernet ports (1x Local network / 1x Client network)
Remote assistance: Secure access for maintenance (if 4G VPN modem option is present on site)
User interface: 32" screen as standard (larger sizes, wide format, or video projector available upon request)
Peripherals: Keyboard (AZERTY or QWERTY layout choice) and mouse
Power supply: 230 VAC
Operating temperature: Standard 0°C to +50°C (other upon request)
Enclosure dimensions (H x W x D): 400 mm x 600 mm x 200 mm
Mounting system: 4x wall mounting brackets (Reference: NSYAEFPFSC Schneider Electric)
Data export methods: SQL queries, USB extraction, or direct transfer to local PC
Display Units: Configurable in Bar/PSI, °C/°F, and Liters/Gallons

Options

* These options are not included in the standard system and are available upon request.

Printer
Zebra Printer
PC
4G VPN Modem
Other upon request
×
