Cryogenic Pump Control Unit

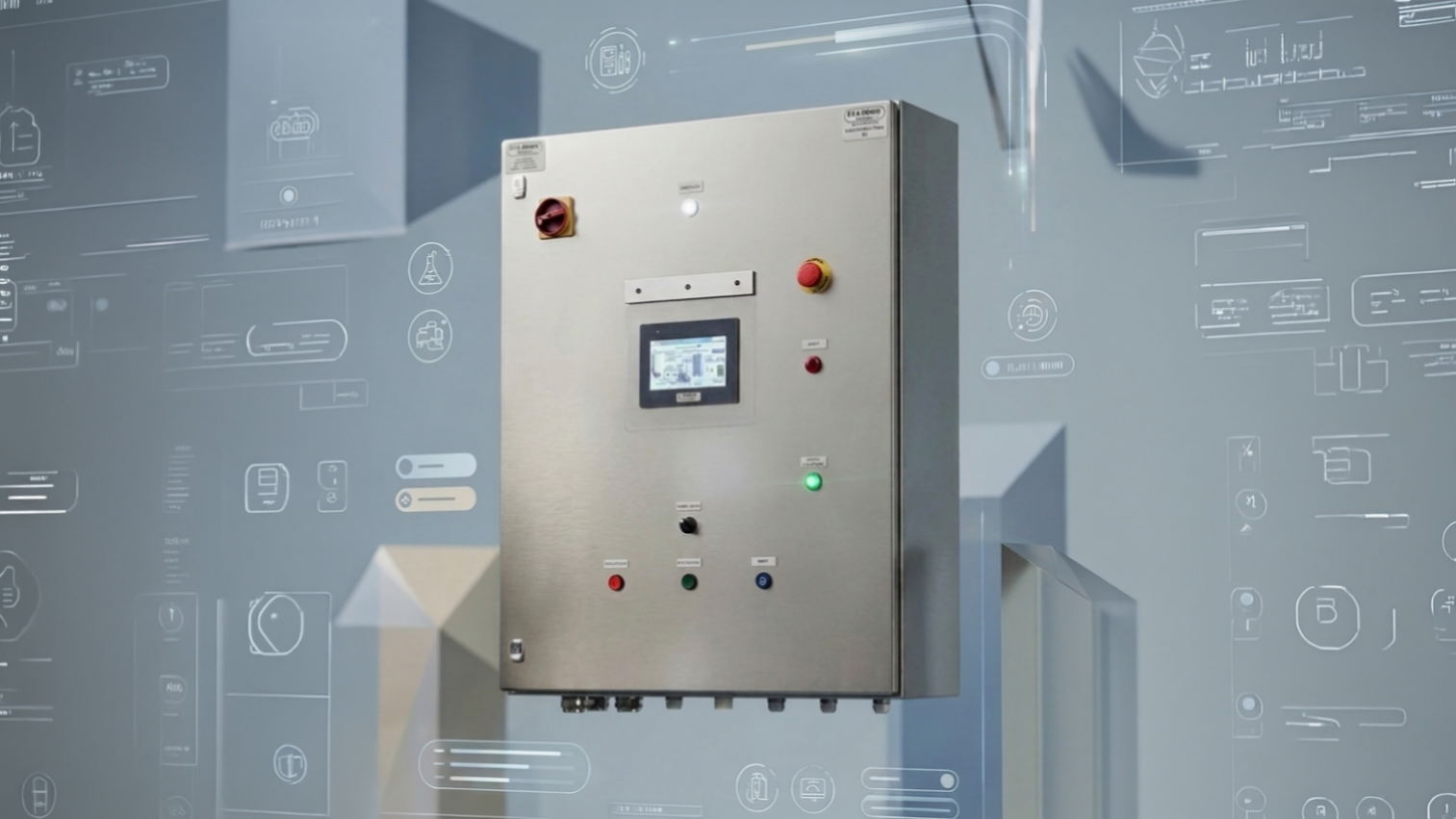

Pump Control Panel

The cryogenic pump control panel is a system developed by PLC & Process ensuring standardized and automated management of the cryogenic pumping process. Designed to minimize operator interventions, it is capable of automatically starting the pump, detecting cavitations, and configuring a number of consecutive degassings after a cavitation-related temperature fault.

Request a Quote Datasheet ← Back

Process Management & Sensors

  • Temperature probes (4 standards): Liquid temperature, Pump outlet temperature, Leak detection temperature, Vaporizer outlet temperature.
  • Pressure sensors: Sensor on the line after the vaporizer, and pressure sensor for the buffer.
  • Tank control: Storage tank pressure and level sensors management.
  • Buffer management: Complete control including buffer filling.

Automatic Valves Control

  • Product valve.
  • Return valve.
  • Degassing valve.
  • Purge / HP buffer valve.
  • Heater bypass valve: to allow "cold filling".

Interface & Security

  • Operator control: Main power disconnect, emergency stop, reset push button, local start button, local stop button, and Auto/Local selector switch.
  • Signaling: Run light and alarm light.
  • HMI Interface: 10" touch screen with integrated RFID card reader.
  • Safety: SIL-3/4 board.

Models, Dimensions & Powers

Standard CO2 / N2O model (7.5 kW): Dimensions (H x W x D) of 600 mm x 600 mm x 250 mm.
O2, N2, Ar model at 200b (22 kW) and 300b (37.5 kW): Dimensions (H x W x D) of 1000 mm x 800 mm x 300 mm.
He and H2 models: Upon request only (systems with compressors).
Display Units: Configurable in Bar/PSI, °C/°F, and Liters/Gallons.
Remote assistance: Secure access for maintenance (if 4G VPN modem option is present on site).
Operating temperature: Standard 0°C to +50°C (other upon request).

I/O Boards Details

Input boards: for element feedback (valves, etc.).
Analog input boards: for 4/20mA sensors.
RTD input boards: for temperature probes.
Output boards: for valve control (24VDC Max 8W).

Options & Specificities

Specific CO2 option: Possibility to integrate a heater directly in the control cabinet (upon request and at an additional cost).
No other optional equipment is offered at an additional cost for pump control panels.
×
